A tiny percentage of film shoots require the use of equipment in the water or deep underwater, but in order to comply with the stringent requirements set forth by the mandatory standards, this equipment must be of an exceptionally high technical caliber.
Since the underwater crew’s life is the first thing that needs to be protected, one example of such a requirement would be the devices’ ability to protect against electrical shock. HungaroFLASH selected the use of low voltage to drive the underwater LED among several other options to satisfy these requirements. The LED lamp head unit is powered by 48VDC instead of 230VAC. Additionally, underwater operation is stopped at the smallest fault current of a few miliamps by the residual circuit breaker.
Modern technical aspects, such as cutting edge LED technology and driving, were also incorporated into the design of the device in addition to the numerous protection concerns.
Many accessories are available for BARACUDA 2K, some of which may be specially requested by customers on an as-needed basis.
The following elements basically make up the LED device complex:

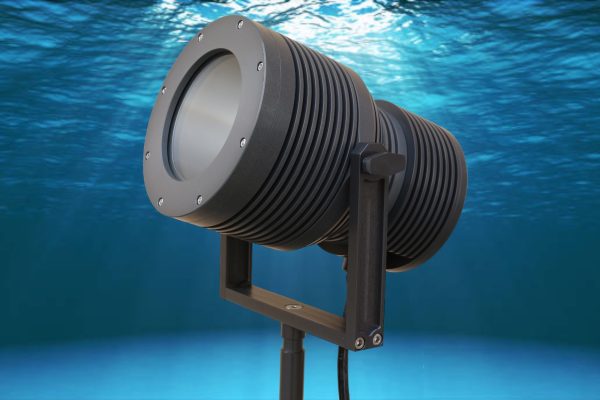

– Lamp head unit
– LED control unit
– A 25-meter HEAD cable rated IP69K
– Power Cord -3m
– FLIGHTCASE hybrid
Extra accoutrements
– 4 leaf Barndoors
– A head cable measuring 50 meters
– A cable for DMX
Before using, please make sure you have read the usage instructions.
Product Price | $16 450,00 | ||
Click to add this item to cart. |
SKU: | BAR2K |
MPN: | BAR2k |
Size: | 30cm x 31cm x 30cm (LxWxH) |
Weight: | 18 kg |
Product Description
Product Features
Nominal Voltage | 100-230VAC - 48VDC V |
Power Consumption | 20 Amper (100V) / 9 Amper (230V) A |
Beamangle | 35-40 degree Degree |
Dimming | 10-100 or 0-100 % |
Control | DMX |
Color temperature | 2500 - 8000 K |
CRI | 95 |
IP rating | |
Price | 16450 USD |
Weight | 18 kg |
